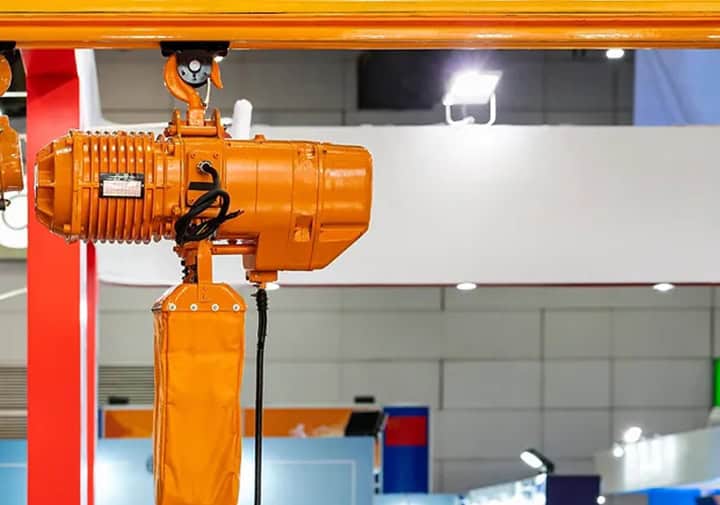

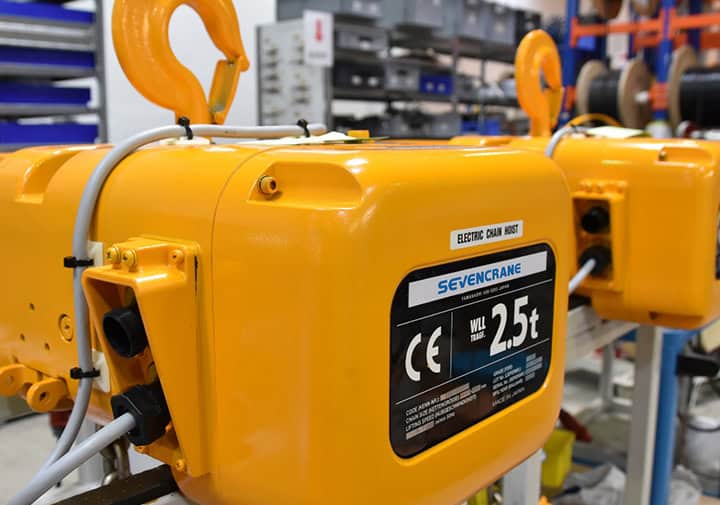

Electric Chain Hoist Introduction

Overview

◈The electric chain hoist uses a disc brake motor as the power, and the planetary reducer reduces speed. It has the characteristics of compact structure, small size, light weight, high efficiency, convenient use, reliable braking, and simple maintenance. It is suitable for low-speed and small-stroke In terms of material handling, equipment installation, mines and engineering construction, it is inexpensive, high-quality, safe and reliable. It is widely used in petroleum, petrochemical, petrol stations, oil depots, gas production, chemical industry, electric power, mining, electronics, railways and other potentially fire and explosion hazardous environments.

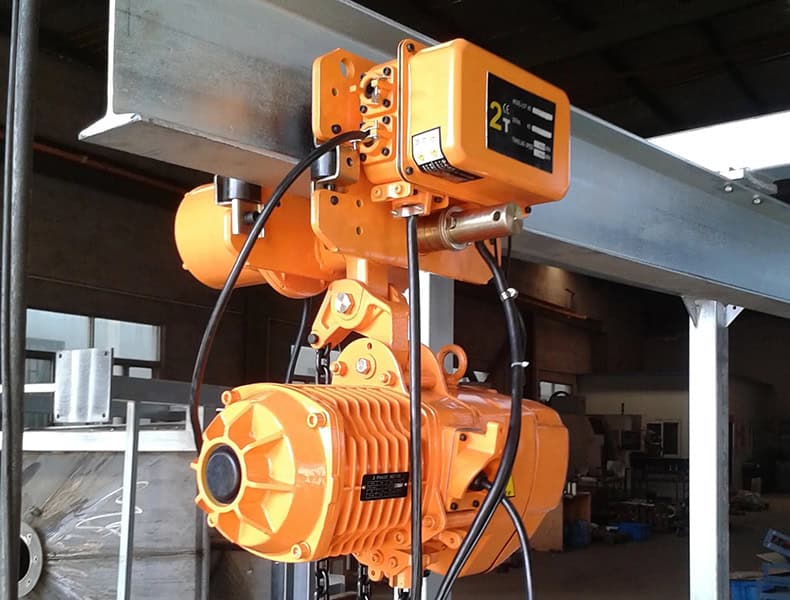

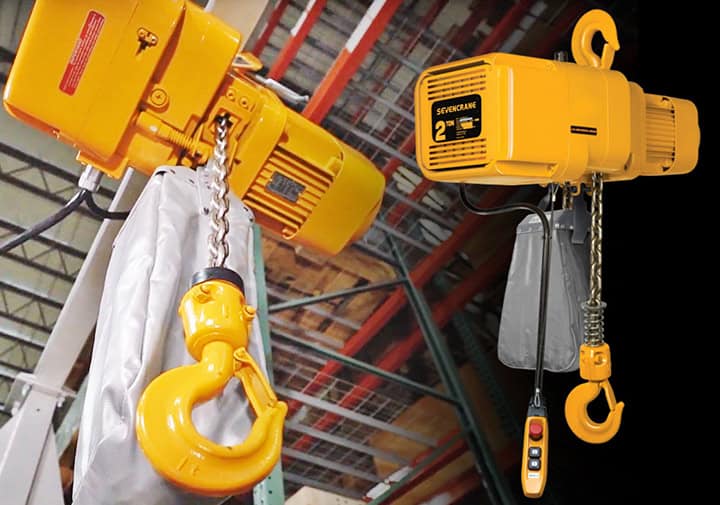

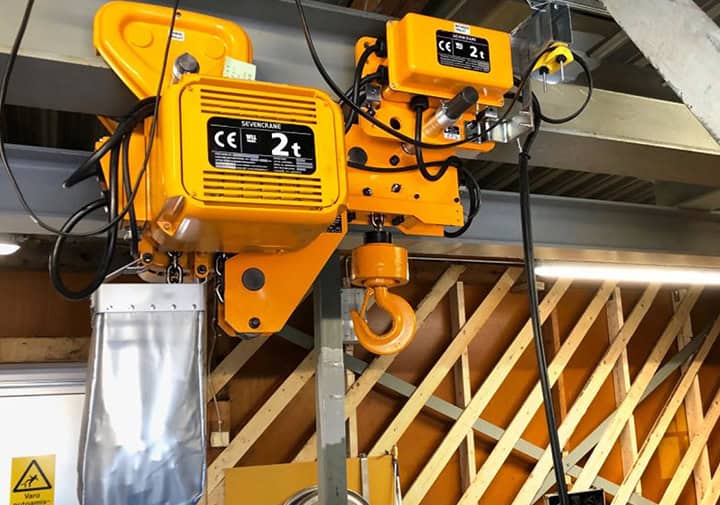

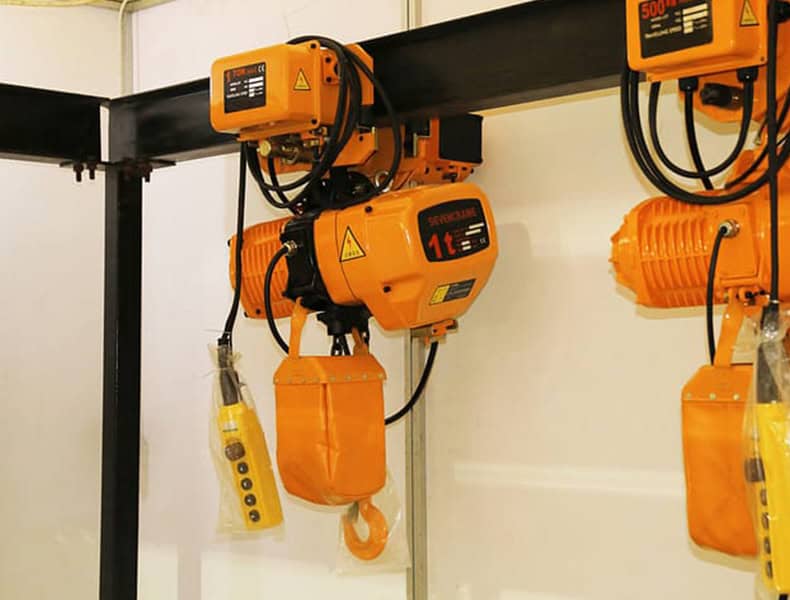

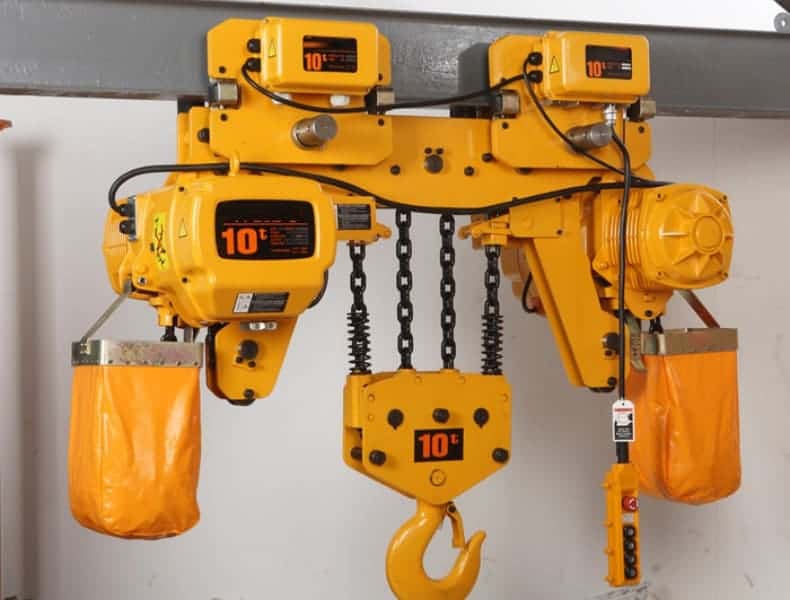

◈Adopting international advanced technology, fine workmanship and tight gear matching, there are generally two types: hook suspension type and chain hoist electric trolley type. The chain hoists produced by our company have the characteristics of compact structure, small size, light weight, reliable performance, easy operation and wide range of use. SEVENCRANE electric chain hoist can be controlled on the ground using the handle, and can be controlled by wired (wireless) remote control.

Components

1.Shell: Light but solid aluminum alloy shell, Fast heat dissipation, fit for the use in the terrible work environment.

2.Motor: High quality motor, Low noise, working class M4, fit for the use in the severe work environment great tools for factory lifting jobs

3.Hook: high strength hook is designed with 360-degree flexible rotating structure

4.G80 Alloy chain: Equipped with High strength and hardness G80 Alloy chain, safe and durable.

5.Inverse phase sequence protecting device: It is the special electrical installation. which control the circuit not to work in case of wiring error in the power supply.

6.Controller: 24V low voltage Control handle with emergency stop button (Option: Wireless controller is also available with extra charge)

7.Limit switch: The limit switch device is installed where the weight is lifted on and off to make the motor to stop automatically so as to prohibit the chains from exceeding for safety.

8.Side magnetic braking device: This device shall realize the instant brake in case of the power dump.

9.Chain bag: Light, handsome and durable.

Product Features

Safety & Reliability

-Instant Power-Off Braking: Magnetic braking system activates immediately upon power loss for accident prevention.

-Leakage-Proof Design: 24V/36W transformer ensures safe operation in rain and high-humidity environments.

-Error-Proof Protection: Phase sequence protector blocks circuit activation during wiring errors.

Heavy-Duty Construction

-Lightweight Aluminum Shell: Enhanced cooling fins improve heat dissipation by 40%.

-Industrial-Grade Sealing: Fully enclosed structure for chemical plants, electroplating workshops, and harsh conditions.

-Double Steel Plate Frame: Ultra-sturdy support for maximum load stability.

Smart & Durable Components

-Auto-Limit Switch: Prevents chain over-lifting by stopping the motor automatically.

-High-Frequency Contactor: Built for repetitive heavy-duty operations.

-360° Rotating Hook: Hot-forged steel with anti-slip torque piece for flexible positioning.

Weather & Corrosion Resistance

-G80 Grade Manganese Steel Chain: After high-temperature forging treatment, the chain load-bearing effect is the best, smoother and does not jam the chain.

-Waterproof Controls: Durable, lightweight push button for reliable operation in wet environments.

Advantage

-The overall performance of the chain electric hoist motor is good, the safety and reliability of use are more guaranteed, and the probability of danger is reduced.

-The entire body structure of the chain electric hoist is very simple. It is convenient to install, disassemble, and repair, and has good maintainability.

-The clearance height is better, which effectively saves space, and multiple styles (fixed, low clearance, running) are not limited by small space.

-The shell is made of light aluminum alloy shell, which is light and strong, with high heat dissipation rate, and the fully sealed design is suitable for use in environments with poor working conditions.

-The three-in-one transmission technology provides excellent performance, and the lifting reducer made of high-quality alloy steel can achieve three-stage reduction, run very smoothly, have a long service life, and reliable performance, avoiding many shortcomings of long-distance transmission of the hoist intermediate shaft.

-More unique innovations, novel and beautiful appearance, exquisite and lightweight structure and humanized design (limit switch, double brake system, scientific switch, chain, chain bag, etc.).

Crane Kits Features

Design

Technology

Production

Maintenance And Security

The crane kits produced by our company are produced in strict accordance with European standards and comply with ISO, FEM and DIN specifications.

The mechanism can be customized according to the lifting weight, height, speed and work level required by the customer.

We adopt a modular design, and both the electric hoist and the trolley are detachable. In addition, we can also provide replacement parts for the hoists.

Design Scheme

SEVENCRANE stands for first-rate service, cost-effective, high quality.

Our wheels, hooks and other equipment can provide customers with a replacement solution for their cranes.

Produced and developed in accordance with European standards, compared with traditional crane components, it has lighter weight and more stable and reliable operation.

Moreover, the appearance of the gourds we produce can also be customized according to customer preferences, which is highly manufacturable.

The parts group technology we produce has cooperated with SWF-Schneider-ABM-ABB-Siemens-HBC, which are well-known domestic and foreign parts manufacturers.

The customized crane accessories we produced can not only increase the service life of your crane, but also improve the sensitivity of the crane.

Our hoisting gearbox is made of aluminum alloy die-casting shell, which is light in weight. The gears are produced by CNC automatic machining center and have been ground.

We have technical engineers with rich industry experience and very professional supply chain partners to provide you with efficient and professional service guarantee.

Technology

Crane kits consist of standardized and special components that allow simple construction of overhead cranes, gantry cranes and suspension cranes.

Our wire rope hoists are available in capacities from 1 ton to 100 tons using standard materials.

Moreover, our electric hoists offer all possibilities as well as end load ranges, whether standard or special.

High-quality crane components packaged in an economical, plug-and-play system for quick and easy installation.

Production

SEVENCRANE stands for first-rate service, cost-effective, high quality.

The hooks we produce are equipped with DIN15400 forged hooks as standard, and the materials are T-grade 34CrMo4 and V-grade 34CrNiMo6, and the hook strength reaches 985Mpa, and can also achieve 360-degree rotation.

The running drive of large and small vehicles adopts an integrated three-in-one structure composed of a motor, a reducer and a compact brake.

The wheels are equipped with DIN standard spline holes and the three-in-one drive output shaft is directly driven, and the transmission is smooth and shock-free.

The travel limit switch of the trolley adopts the mechanical type of cross pull rod, and the limit switch of the traveling mechanism of the cart adopts the infrared induction photoelectric type.

We equip the cranes with frequency control function to ensure that your crane starts and stops smoothly and also has precise positioning function.

MAINTENANCE AND SECURITY

All operators in our production workshop must hold legal operating certificates.

The crane components produced, developed and designed by SEVENCRANE are based on the customer's sense of use and perception, providing customers with ergonomic crane accessories that are easy to disassemble and assemble.

Tailor-made crane packages to meet the specific needs of single and double girder overhead cranes and suspension cranes.

User-friendly assembly based on the plug-and-play principle with high safety, reliability and efficiency.

Whether lifting molten metal in a steel production facility or using a complete crane system in automotive manufacturing, SEVENCRANE crane packages can help keep your production operations safe.

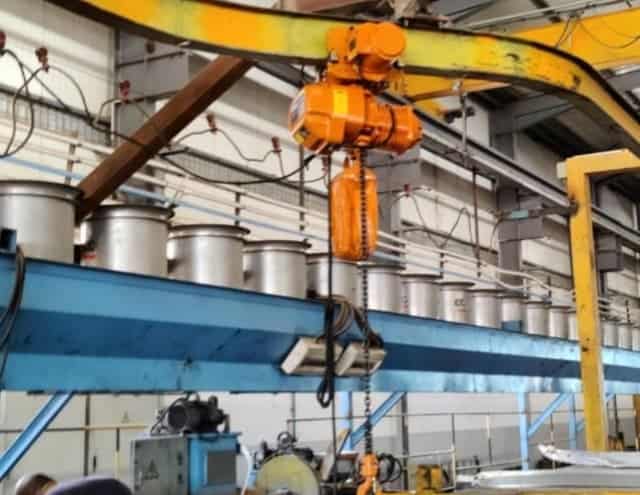

SUCCESSFUL PROJECT
