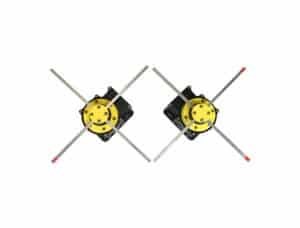

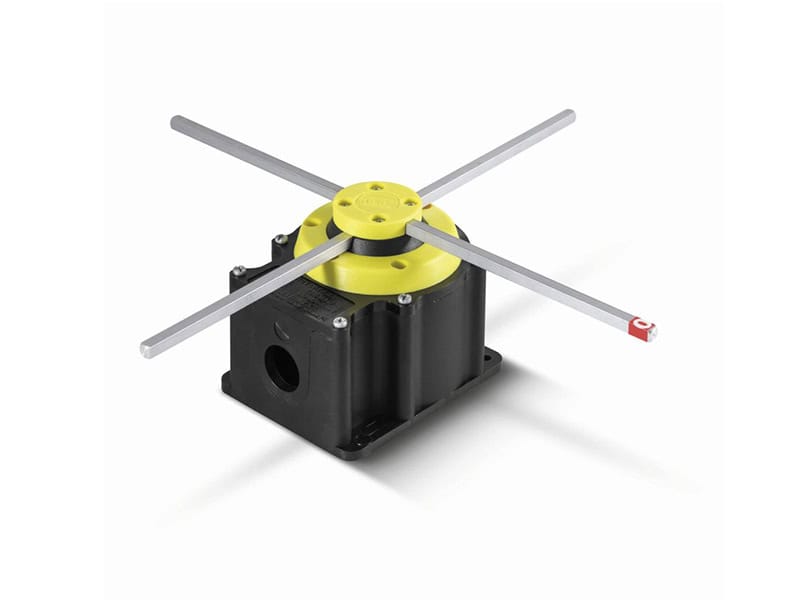

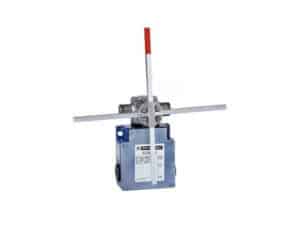

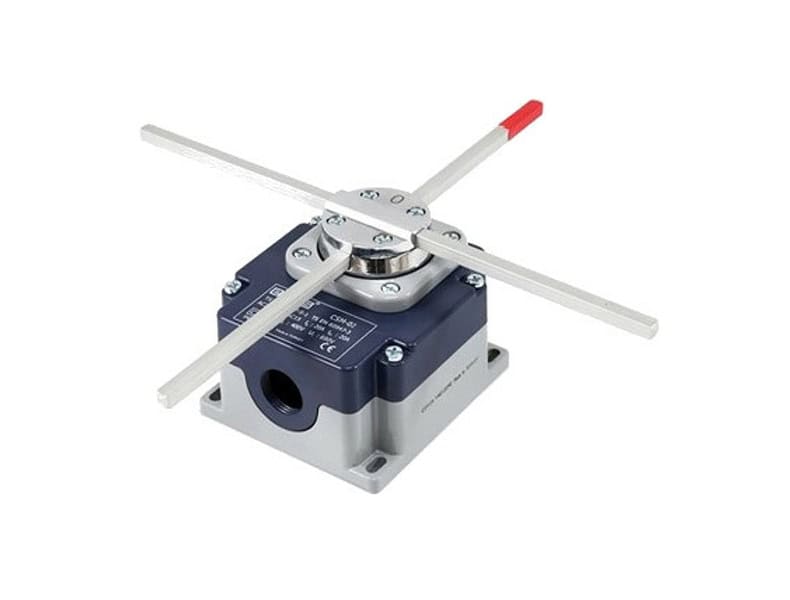

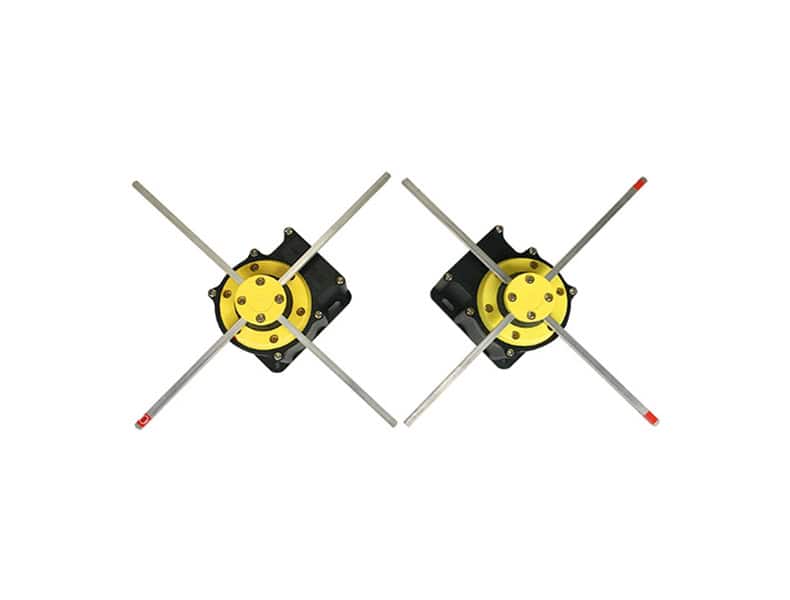

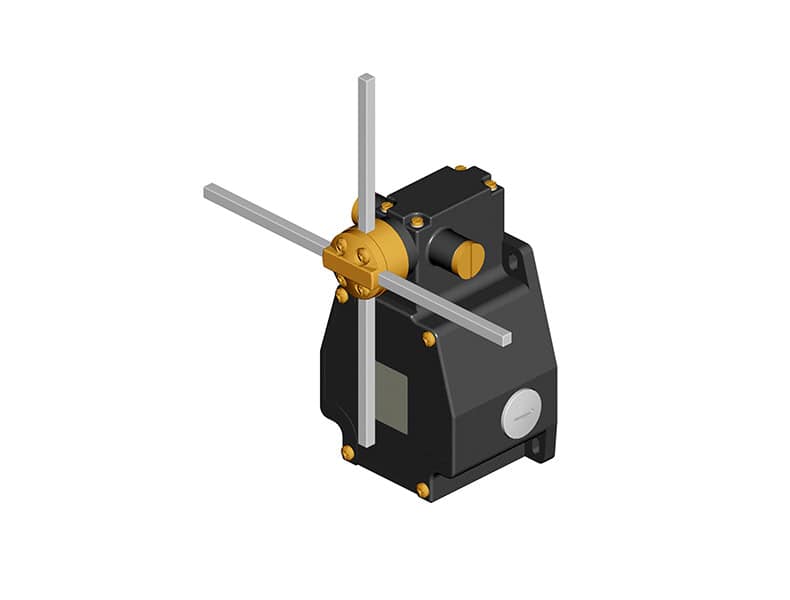

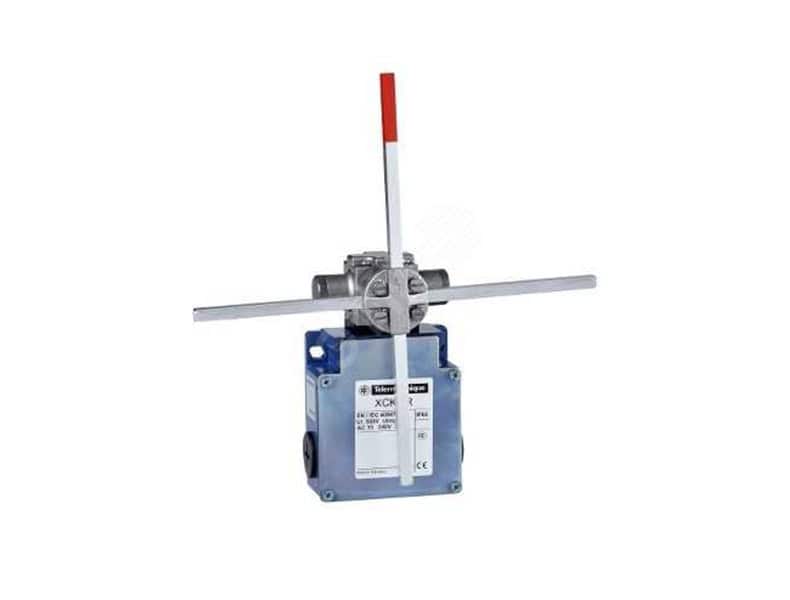

Crane Travelling Limit Switches

The travel limit switch is an electrical appliance for the crane to control the motor according to the operation. According to different purposes, crane accessories-travel limiter can be divided into two types: terminal switch (limit switch) and switch (protection switch). The end switch is used to limit the operation of the mechanism within a certain range and is installed at the end of the stroke of the operating mechanism. The switch is used to protect the operator. For example, the switch from the cab to the hatch of the upper main beam platform is called a hatch switch, also known as a door interlock. Crane travelling limit switches have almost limitless applications in regulating the operation of a crane to prevent potential accidents. For example, when a rope comes out of a groove or when two trolleys are prevented from hitting the same bridge structure.

Share us:

Description Specifications Features CASes

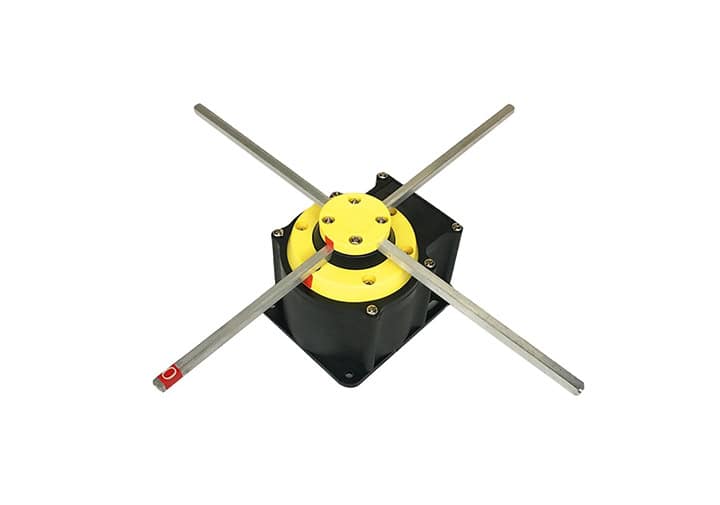

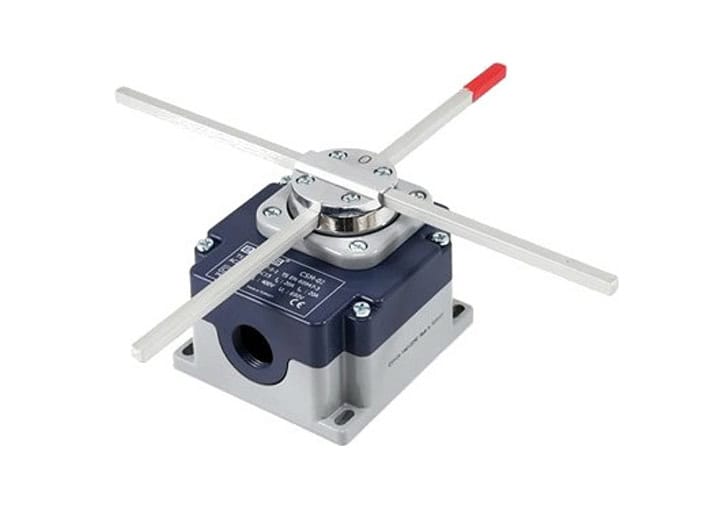

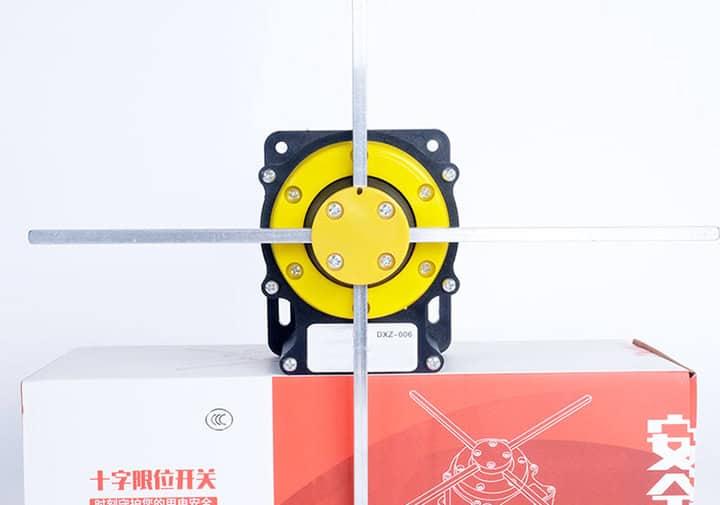

Crane Travelling Limit Switches introduction

The crane travelling limit switch is an important safety device used to prevent electric trams or bridges from hitting at high speeds. Limit switches also prevent overhead cranes from lifting loads heavier than their rated capacity. There are various types of limit switches that help prevent the hoist from overtraveling and some that help protect the hoist motor from overheating. There are usually several limit switches in a crane operation. While one switch can indicate that the crane is close to reaching the safe travel limit, another switch can indicate when the safe travel limit has been reached and stop the crane from moving further. Heavy-duty limit switches are an essential part of providing a safe environment in overhead crane applications.

Limit switches are operated by contact with the crane hook block. When activated, the limit switch interrupts power to the elevator motor. This prevents the hook block from colliding with the cable drum, which could cause a load drop or other unsafe condition. Limit switches can be remanufactured using existing specialty components.
The crane limit switches produced by our company are in strict accordance with European standards, modular production, easy to disassemble and install. If you need it, please contact us for a quotation as soon as possible!

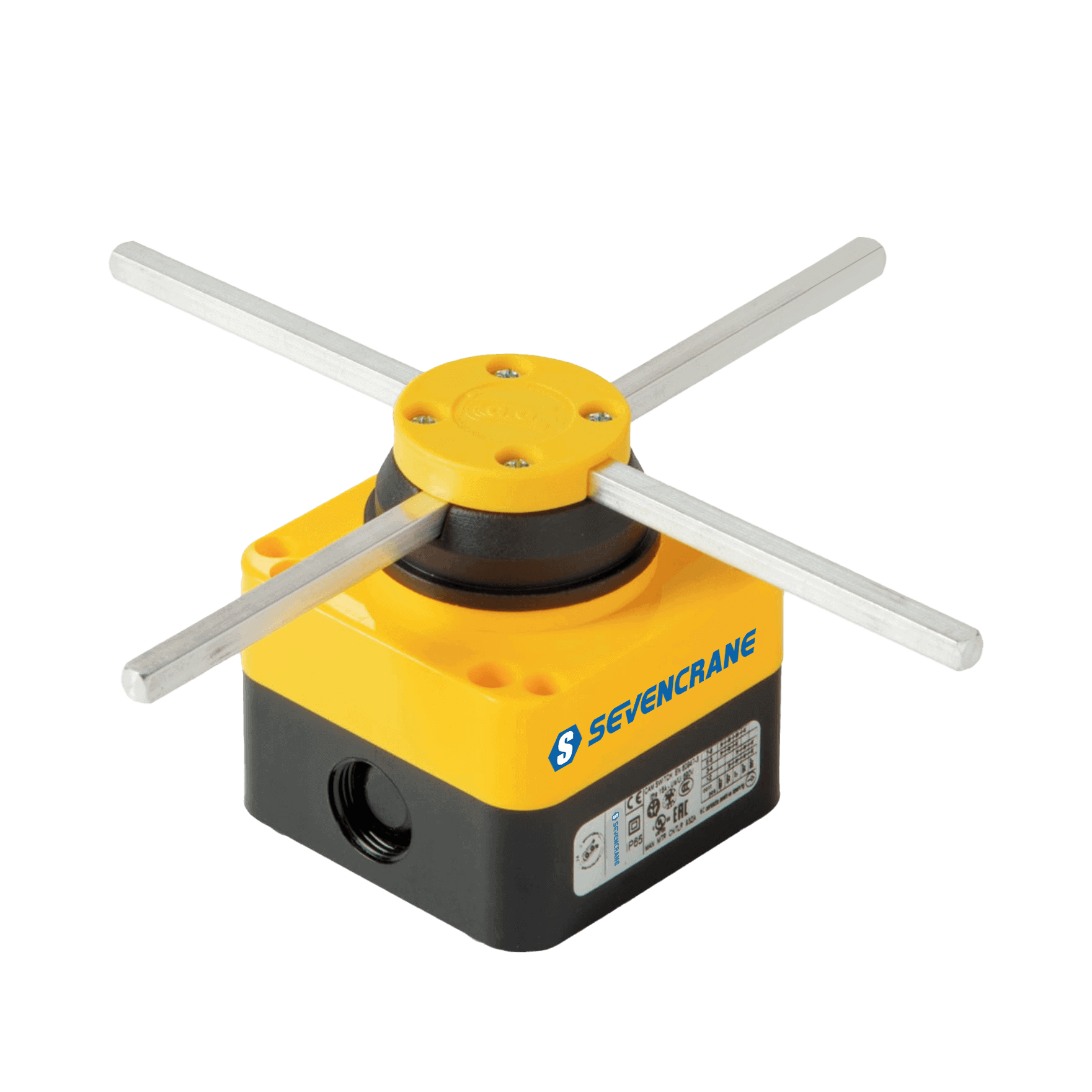

Crane Travelling Limit Switches Specification

Product Specifications

Protection level:

IP65

Product certificate:

Product voltage:

690V 16A

Opening size:

80mm * 75mm

Size:

112mm * 92mm * 64.5mm

Spare Parts Features

Design

Technology

Production

Maintenance And Security

Our crane kits are designed according to ISO, FEM and DIN specifications. Choose the mechanism based on the desired lifting and execution speed and job class.

Modular design for easy assembly and disassembly and strong manufacturability. And it has a more exquisite appearance design.

From large components such as engines or gearboxes to the most common components such as cables, we supply our customers with every possible spare part they may need.

Design Scheme

SEVENCRANE stands for first-rate service, cost-effective, high quality.

Parts are supplied from our central warehouse through our distribution channels within a short period of time, guaranteed by the highest quality and perfect service.

All of our spare parts are specially designed for lifting equipment, ensuring top quality and reliability.

As a substitute for an OEM part, an equivalent part is a functionally similar replacement manufactured by SEVENCRANE or sourced from a supplier other than the original manufacturer.

The parts group technology we produce has cooperated with SWF-Schneider-ABM-ABB-Siemens-HBC, which are well-known domestic and foreign parts manufacturers.

The new European crane accessories we produce can not only increase the service life of your crane, but also improve the sensitivity of the crane.

Our hoisting gearbox is made of aluminum alloy die-casting shell, which is light in weight.

We have technical engineers with rich industry experience and very professional supply chain partners to provide you with efficient and professional service guarantee.

Technology

The gears are produced by CNC automatic machining center and have been ground.

With our own extensive spare parts stock and carefully selected sub-suppliers, we can fulfill most requirements on short notice.

With our own service engineers and partners, we can meet all service requirements for cranes and hydraulic systems worldwide.

Depending on the work required, our engineers will bring their own tools and equipment, which includes all lifting blocks, hydraulic jacks, etc., to provide door-to-door repair services to customers.

Production

SEVENCRANE stands for first-rate service, cost-effective, high quality.

The hooks we produce are equipped with DIN15400 forged hooks as standard, and the materials are T-grade 34CrMo4 and V-grade 34CrNiMo6, and the hook strength reaches 985Mpa, and can also achieve 360-degree rotation.

The running drive of large and small vehicles adopts an integrated three-in-one structure composed of a motor, a reducer and a compact brake.

The wheels are equipped with DIN standard spline holes and the three-in-one drive output shaft is directly driven, and the transmission is smooth and shock-free.

The travel limit switch of the trolley adopts the mechanical type of cross pull rod, and the limit switch of the traveling mechanism of the cart adopts the infrared induction photoelectric type.

We equip the cranes with frequency control function to ensure that your crane starts and stops smoothly and also has precise positioning function.

sevencrane customized spare parts on sale

MAINTENANCE AND SECURITY

All operators in our production workshop must hold legal operating certificates.

The crane components produced, developed and designed by SEVENCRANE are based on the customer's sense of use and perception, providing customers with ergonomic crane accessories that are easy to disassemble and assemble.

Tailor-made crane packages to meet the specific needs of single and double girder overhead cranes and suspension cranes.

User-friendly assembly based on the plug-and-play principle with high safety, reliability and efficiency.

Whether lifting molten metal in a steel production facility or using a complete crane system in automotive manufacturing, SEVENCRANE crane packages can help keep your production operations safe.

SUCCESSFUL PROJECT

Check Some Of Our Recent Works For Customer

Export To Australia Crane Traveling Limit Switches

Export To Romania Crane Traveling Limit Switches

Export To Singapore Crane Traveling Limit Switches
