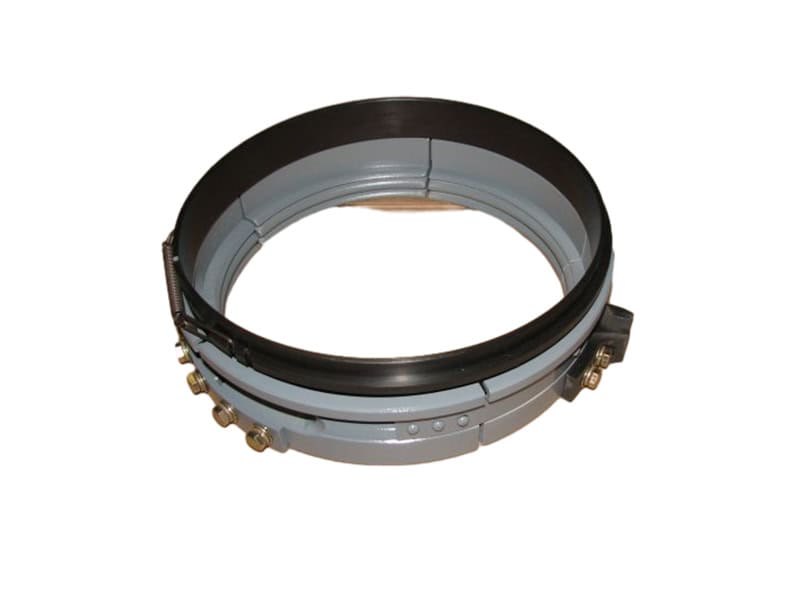

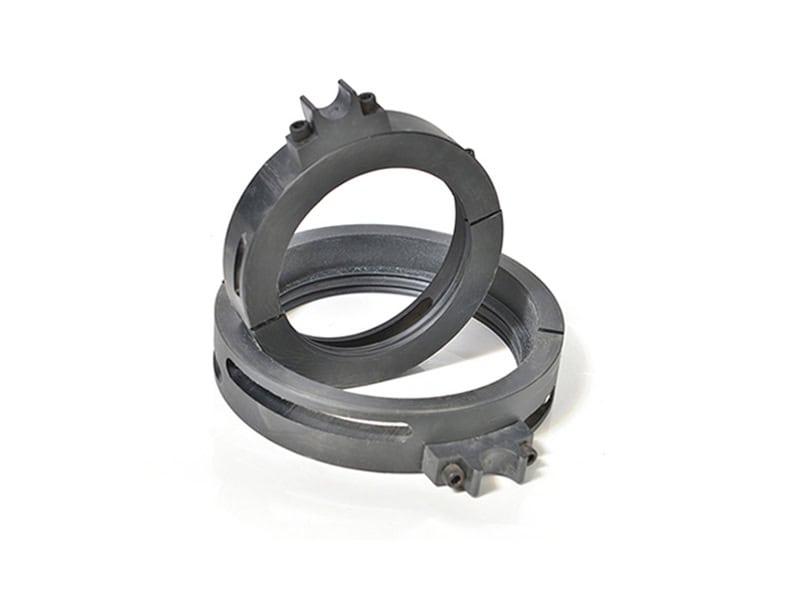

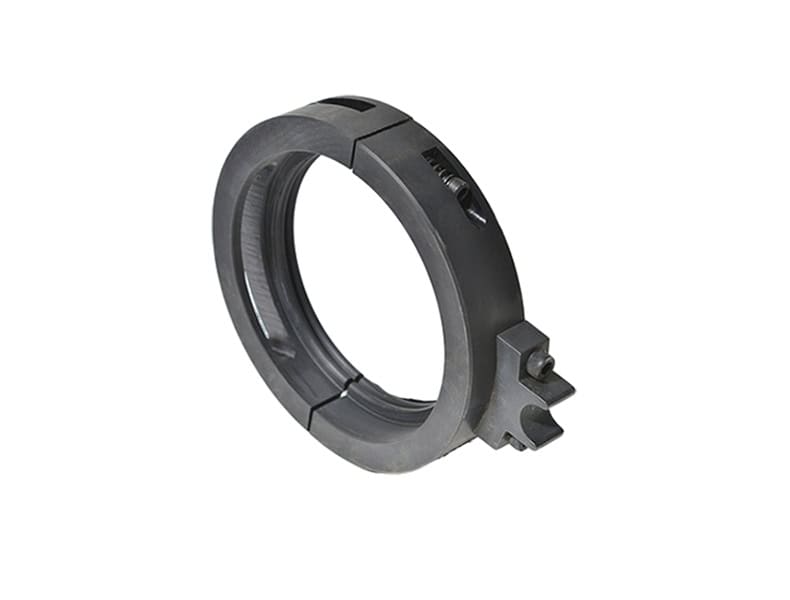

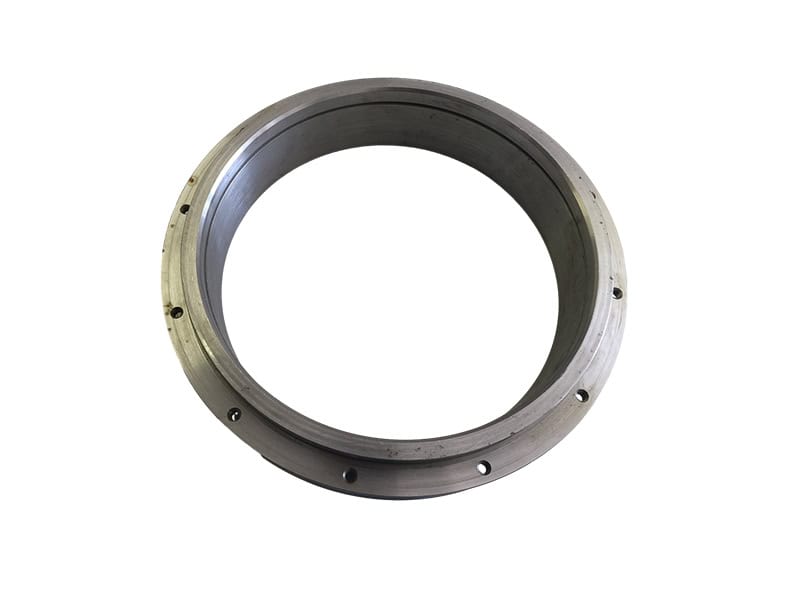

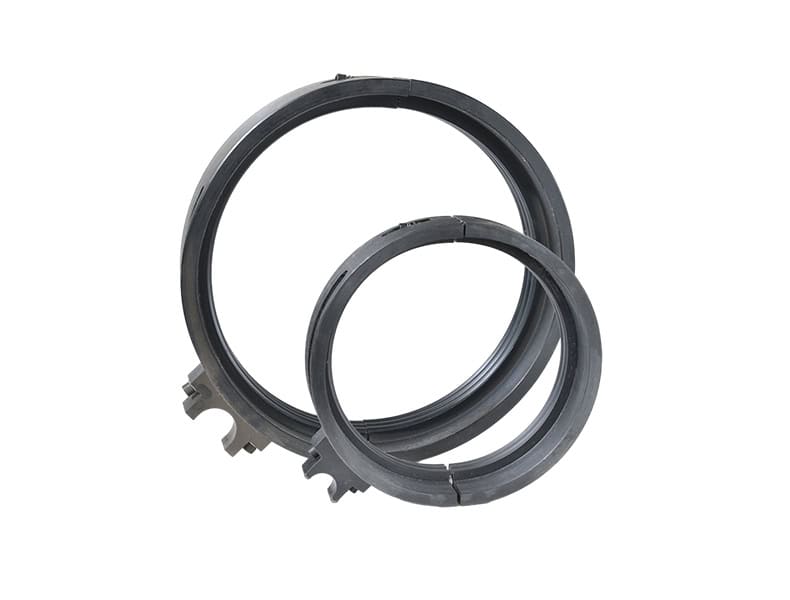

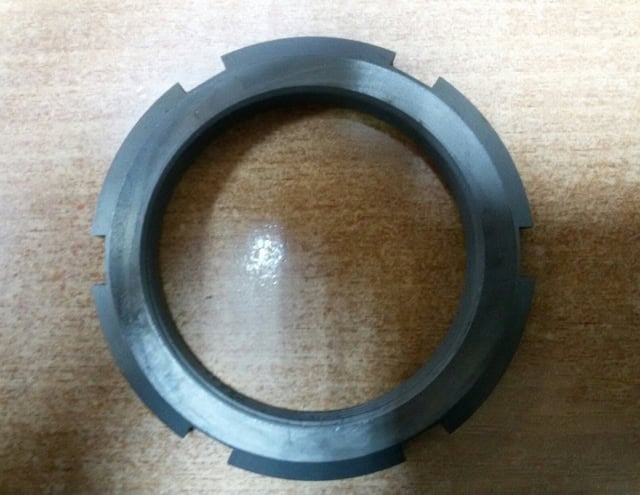

Crane Rope Guide

Rope guides are lightweight, durable, and quick and easy to install, requiring no special tools. It is very tough and able to withstand extreme applications and environments. The rollers provide a smooth transitional motion which increases service life by reducing wear on the drum and guide itself. Our crane rope guide can be adapted for various drum sizes and any drum pitch direction, and its modular design allows for the installation of equipment with new functions such as drum cleaning, side pull prevention and rope gauging. Rope guides for specific drum diameters can be configured to suit different crane applications and configurations.

Share us:

Description Specifications Features CASes

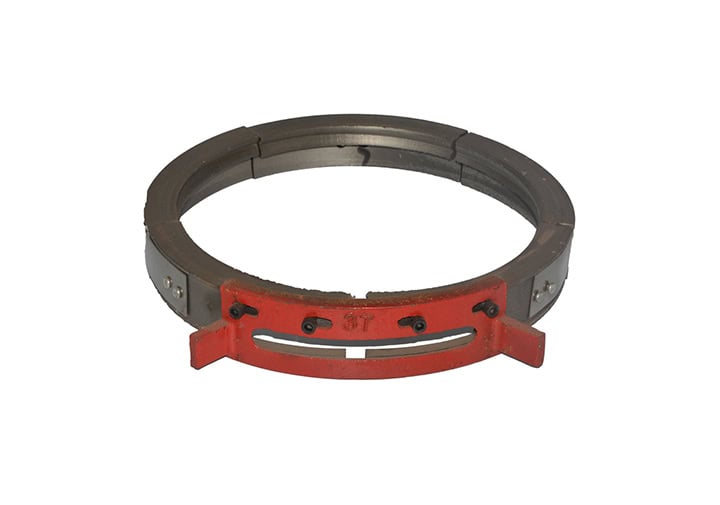

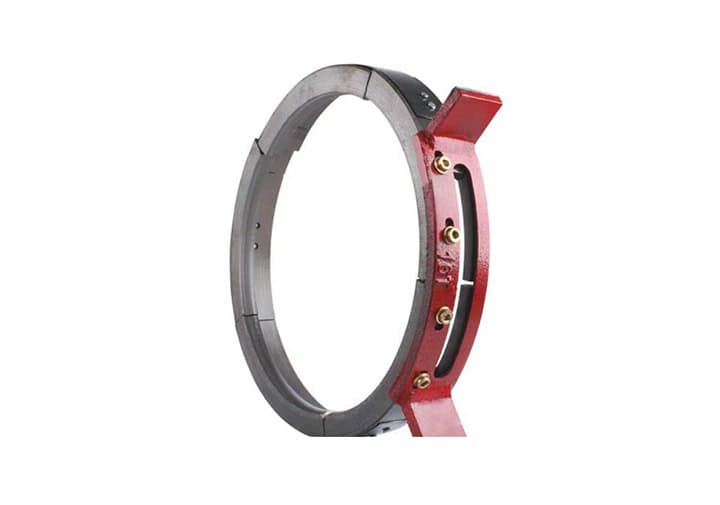

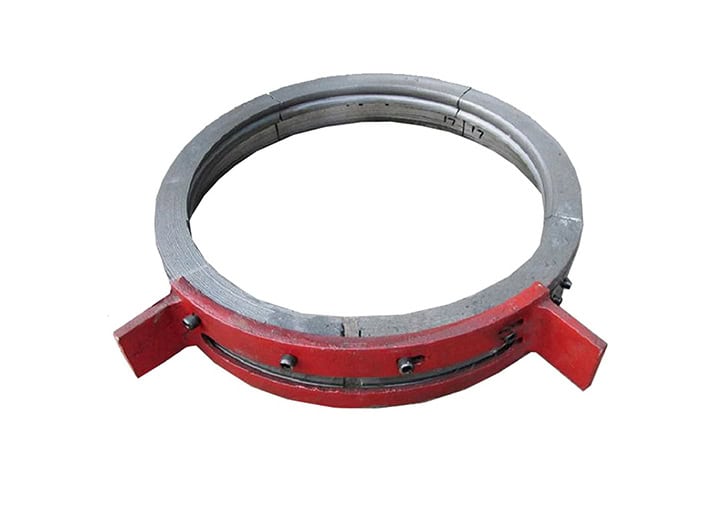

Crane Rope Guide introduction

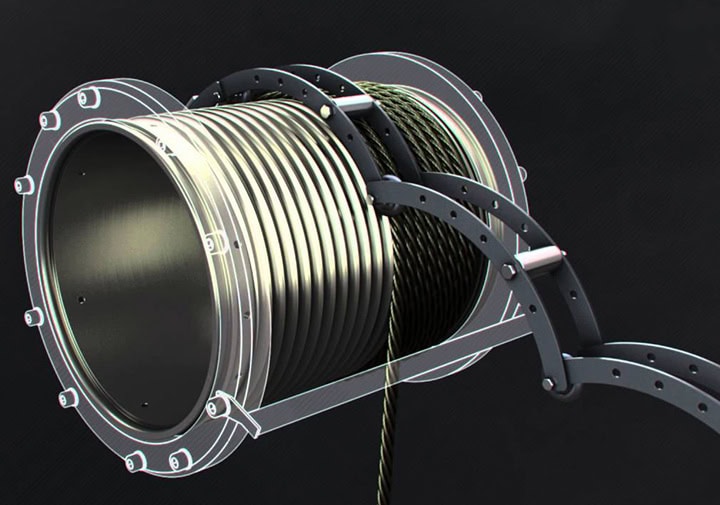

The crane wire rope guide can ensure the normal operation of the electric hoist and prolong the service life of the wire rope and drum. The rope guide is also called the wire rope hoist, which is one of the accessories of the electric hoist. Its function is to make the wire ropes neatly arranged on the reel and prevent the wire ropes from being disordered and overlapping caused by the electric hoist.
Cast from GGG70 material, the crane rope guide ensures the correct winding and unwinding of the rope on the pitch on the drum, with practical assembly and disassembly functions. In some special applications, it can also be used for caster production.

The wire rope guide is a convenient, high-quality, low-cost alternative to almost any brand of wire rope guide, and is generally suitable for small and medium-sized wire rope hoists. Because our wire rope guides are of universal design, they offer quick installation and high-value performance.
Its function is to make the steel wire ropes neatly arranged around the drum, so as to prevent the electric hoist from malfunctioning or even damage to the hoist due to the confusion or overlapping of the wire ropes. If the guide is subjected to a large lateral force during operation, it will cause braking. The rope guide, also known as the rope arrangement device, is to arrange the wire ropes neatly around the drum to prevent the electric hoist from malfunctioning or even damage to the hoist due to chaotic or overlapping wire ropes.

Crane Rope Guide Specification

Product Specifications

Rated Lifting Capacity:

0.5T-20T

Steel Inner Diameter:

158mm-426mm

Iron Inner Diameter:

158-426mm

Spare Parts Features

Design

Technology

Production

Maintenance And Security

Our crane kits are designed according to ISO, FEM and DIN specifications. Choose the mechanism based on the desired lifting and execution speed and job class.

Modular design for easy assembly and disassembly and strong manufacturability. And it has a more exquisite appearance design.

From large components such as engines or gearboxes to the most common components such as cables, we supply our customers with every possible spare part they may need.

Design Scheme

SEVENCRANE stands for first-rate service, cost-effective, high quality.

Parts are supplied from our central warehouse through our distribution channels within a short period of time, guaranteed by the highest quality and perfect service.

All of our spare parts are specially designed for lifting equipment, ensuring top quality and reliability.

As a substitute for an OEM part, an equivalent part is a functionally similar replacement manufactured by SEVENCRANE or sourced from a supplier other than the original manufacturer.

The parts group technology we produce has cooperated with SWF-Schneider-ABM-ABB-Siemens-HBC, which are well-known domestic and foreign parts manufacturers.

The new European crane accessories we produce can not only increase the service life of your crane, but also improve the sensitivity of the crane.

Our hoisting gearbox is made of aluminum alloy die-casting shell, which is light in weight.

We have technical engineers with rich industry experience and very professional supply chain partners to provide you with efficient and professional service guarantee.

Technology

The gears are produced by CNC automatic machining center and have been ground.

With our own extensive spare parts stock and carefully selected sub-suppliers, we can fulfill most requirements on short notice.

With our own service engineers and partners, we can meet all service requirements for cranes and hydraulic systems worldwide.

Depending on the work required, our engineers will bring their own tools and equipment, which includes all lifting blocks, hydraulic jacks, etc., to provide door-to-door repair services to customers.

Production

SEVENCRANE stands for first-rate service, cost-effective, high quality.

The hooks we produce are equipped with DIN15400 forged hooks as standard, and the materials are T-grade 34CrMo4 and V-grade 34CrNiMo6, and the hook strength reaches 985Mpa, and can also achieve 360-degree rotation.

The running drive of large and small vehicles adopts an integrated three-in-one structure composed of a motor, a reducer and a compact brake.

The wheels are equipped with DIN standard spline holes and the three-in-one drive output shaft is directly driven, and the transmission is smooth and shock-free.

The travel limit switch of the trolley adopts the mechanical type of cross pull rod, and the limit switch of the traveling mechanism of the cart adopts the infrared induction photoelectric type.

We equip the cranes with frequency control function to ensure that your crane starts and stops smoothly and also has precise positioning function.

sevencrane customized spare parts on sale

MAINTENANCE AND SECURITY

All operators in our production workshop must hold legal operating certificates.

The crane components produced, developed and designed by SEVENCRANE are based on the customer's sense of use and perception, providing customers with ergonomic crane accessories that are easy to disassemble and assemble.

Tailor-made crane packages to meet the specific needs of single and double girder overhead cranes and suspension cranes.

User-friendly assembly based on the plug-and-play principle with high safety, reliability and efficiency.

Whether lifting molten metal in a steel production facility or using a complete crane system in automotive manufacturing, SEVENCRANE crane packages can help keep your production operations safe.
