Container Cranes from China Manufacturer

Container Cranes introduction

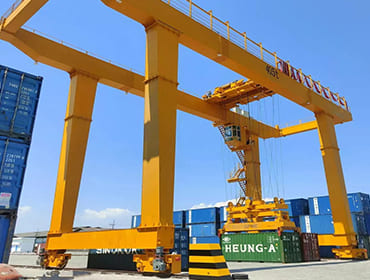

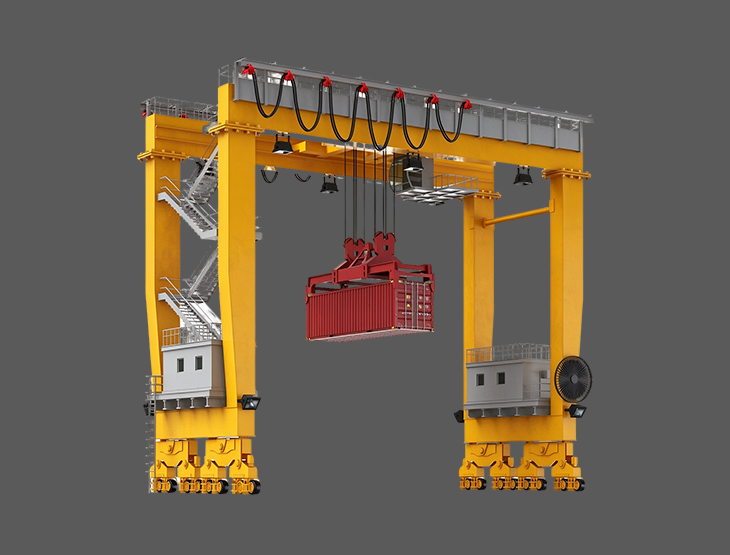

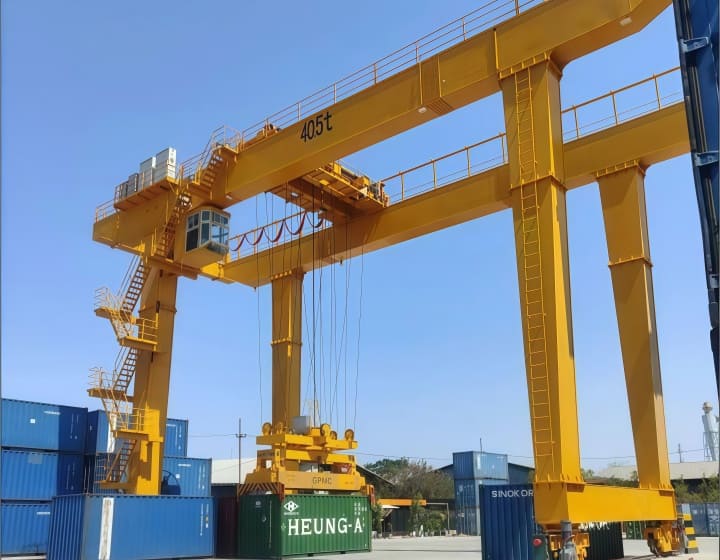

Sevencrane container cranes are highly efficient solutions designed to improve loading and unloading efficiency in railway systems, ports, container terminals and yards. We offer a variety of container handling cranes, including rail mounted gantry cranes (RMG) and rubber tire gantry cranes (RTG), which can be customized to your specific needs. Equipped with special container spreaders, these cranes are suitable for lifting international standard containers (20 feet, 40 feet, 45 feet), with advanced performance, high productivity, strong maneuverability and good adaptability to ground unevenness.

Sevencrane container cranes are widely used in front loading and unloading operations of heavy cargo and container berths at terminals, as well as transportation and stacking operations in yards. With their innovative design and excellent performance, these cranes can efficiently complete loading and unloading tasks in open spaces, greatly improve operating efficiency, and bring reliable and efficient solutions to customers’ container handling business.

Features:
1. Advanced performance: Designed for efficient and seamless container handling operations, it provides precise and smooth movement, minimizes downtime and improves productivity.
2. High production efficiency: The combination of fast lifting and precise positioning significantly reduces container handling time and improves overall operating efficiency.
3. Excellent maneuverability: The track-type design ensures easy navigation and positioning in the container yard and adapts to complex operating environments.
4. Widely applicable: Suitable for a variety of scenarios such as container terminals, intermodal transport facilities, and logistics centers.
5. Strong adaptability: The track-type structure is less sensitive to ground unevenness, ensuring stable and efficient operation of the equipment.
6. Customized design: It can be customized according to specific operating requirements, including lifting height, span and operating speed, to achieve optimal performance.
7. Optimized operating speed: The lifting speed is lower to adapt to medium and low stacking requirements, but the long-distance operating speed is higher to improve operating efficiency.
8. Synchronous control system: When the span exceeds 40 meters, a synchronization device is configured to keep the running speed of the legs on both sides consistent through the electrical system to prevent deviation.

Main components:
1. Gantry structure (main beam and outriggers): main beam (girder); outriggers (columns)
2. Trolley and lifting mechanism: lifting drum and rope; trolley motor
3. Hoisting device: fixed hoisting device; telescopic hoisting device; rotating hoisting device
4. Crane cab and control system: joystick control and display
5. Traveling mechanism (track type or tire type): track type; rubber tire
6. Power supply system: electric crane; diesel crane

Application areas:
1. Container terminal: Efficiently cope with the container loading and unloading needs of busy terminals, simplify the operation process and improve productivity.
2. Intermodal facilities: Suitable for container transfer between rail, road and sea transportation, ensuring efficient and smooth operation.
3. Logistics center: Excellent container handling capacity to meet large-scale daily container management needs.
4. Industrial facilities: Can be customized according to different industrial scenarios to provide reliable and efficient container handling solutions.

Key factors affecting the cost of container gantry crane: load capacity; span length; lifting height; container type; throughput

How does a container gantry crane work?
Positioning crane → trolley movement → lowering the spreader → engaging the container with the spreader → lifting the container → trolley transportation → lowering the container → releasing the container → repeating the process

Sevencrane is committed to providing high-quality, cost-effective container lifting crane solutions that meet your unique needs, and our team is always here to help you make smart decisions for your business. If you are interested in detailed gantry crane prices or have any questions, please feel free to contact us for personalized guidance and support.

Gantry Crane Features

Design

Technology

Production

Maintenance And Security

The design scheme of our gantry crane is designed by professional engineers according to the detailed requirements of customer orders.

The production technology and process of gantry crane refer to ISO, FEM and DIN standards.

We have developed more precise assembly parts according to European standards, making the installation and disassembly of the crane more convenient and more compact.

automated rail mounted gantry crane price

Design Scheme

SEVENCRANE stands for first-rate service, cost-effective, high quality.

Bolt structure connection and plug-in electrical connection are adopted, which makes installation and maintenance more convenient, flexible structure and more stable operation.

The maximum deflection of the European-style gantry crane produced by our company is less than 3mm.

Bolt structure connection and plug-in electrical connection are adopted, which makes installation and maintenance more convenient, flexible structure and more stable operation.

Our crane steel welding standards follow DIN18800, BLATT7 specifications.

The crane structure and production design scheme comply with the third edition of FEM1001 standard.

The double speed of the overhead crane is precisely provided by the double speed motor and frequency converter. We select the motors according to the FEM standard, the motor models are IEC Recommendations34-1, 34-5 and 72-1.

The motor gearbox is designed according to ISO/DIS6336/Ⅱ-6336/Ⅴ[DIN51150] standard.

Technology

The lifting trolley adopts European-style optimized modular design, with more compact structure, low clearance height, light weight and strong lifting capacity.

The wheels are driven by a multi-key system which minimizes wear on the wheels and drive shafts.

SEVENCRANE gantry cranes are designed and manufactured with much the same technology as overhead crane systems.

The whole machine adopts the most advanced optimization technology, and the European design can save your construction cost and provide the most effective solution for your project.

automated rail mounted gantry crane suppliers

Production

SEVENCRANE stands for first-rate service, cost-effective, high quality.

It has a professional crane technology research and development team and a complete production line and equipment assembly line, and the process is perfect.

The lifting equipment produced by SEVENCRANE has passed the product certification of many regions, countries and organizations, and our products have also been exported to more than 30 countries and regions.

Our crane design concept is an extension of the European concept, and we have summarized our unique production technology and solutions through long-term in-depth research and application practice.

The whole process of production is basically automated, and the outsourcing of all crane bridge beams is welded by submerged arc welding robots to improve welding accuracy.

The whole process of crane equipment production is monitored by technicians and engineers, so the quality of product production is guaranteed.

MAINTENANCE AND SECURITY

All operators in our production workshop must hold legal operating certificates.

Gantry cranes are maintained and overhauled in accordance with the prescribed European standards.

Operators have been professionally trained and understand the structure, performance, operation methods and safety matters of European cranes before taking up their posts with certificates.

All our production indicators and technologies are aimed at ensuring the safe and stable operation of European-style cranes, preventing accidents caused by human factors, and ensuring the safety of personnel and property.

Safety protection devices such as limit switches, overload limiters, PTC thermistors, collision sensors, and emergency stop buttons ensure the stability and safety of the crane during operation.

All gantry cranes are equipped with a standard-compliant service platform for safe maintenance and inspection by service personnel.

The gantry crane operating manual, electrical diagrams and related instructions for electrical and electronic components will be delivered to the customer when the crane is shipped.

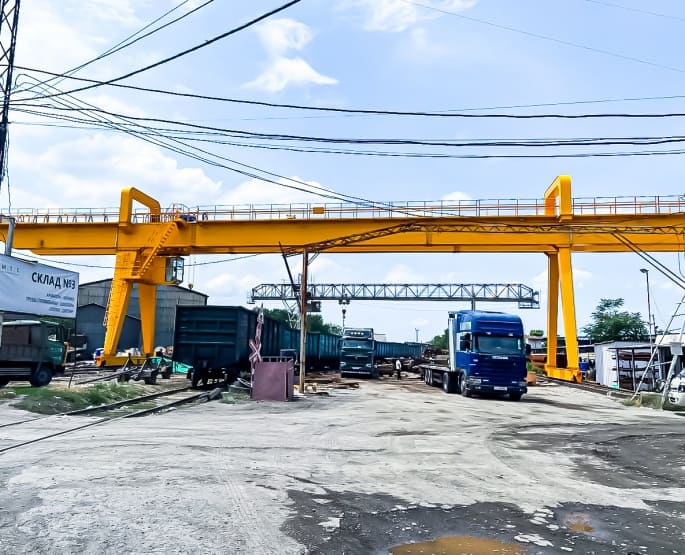

SUCCESSFUL PROJECT
